fantom door stops


BALDWIN online Showroom

Fantom Hidden Door Stops

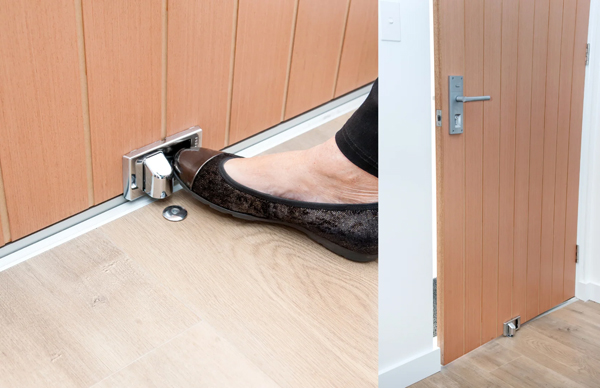

Consealed Door Stop mounts into the
bottom of the door

The stop pin is drilled into the floor

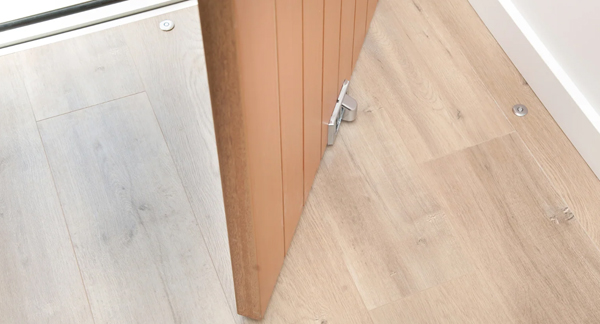

When the door moves over the pin it pops up
and stops the door


Powerful Magnet then holds door in place
and a pull on the door releases the
stops hold allowing the pin to drop
back into the floor

Bottom pin is small 1 1/8" diameter
14mm hole drilled in floor
$24.99

Quantity
Recommended door gap 1/2"
Watch the video below for more information


Shown with optional White floor insert
Clear shipped Standard

The Fantom Door stop was designed in Australia and the holes are Metric for installation
We offer and installation kit that includes all needed bits and tools

14 mm Spade wood boring bit
24 mm Spade wood boring bit
14 mm Masonry bit
2.5 mm pilot hole bit
Clean Out Brush
Phillips head bit

$ 17.99


Quantity



14mm Diamond Bit
for Drilling into tile

$ 12.99



Quantity





Optional Strike For Sliding Doors

Stainless Strike works for sliding doors
does not offer a hard stop but the magnet will
stop and hold the door in most applications

$4.99


Quantity





Surface Mount Bracket


Available in Chrome or White
$ 12.99

Quantity

Works with Standard kit above
