Multi-Point Mechanism

BALDWIN online Showroom

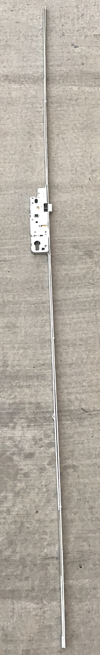

Multi-point Mechansm with Shoot Bolts and One Point Replacements
Check your handle height and Configuation first
Minimum Handle Height 37 5/16"
Profile Cylinder below lever - 92 mm spacing 		We do not have replacment mutli-point parts
This will create a complete system
Verify all parts to see how much door modification will be needed

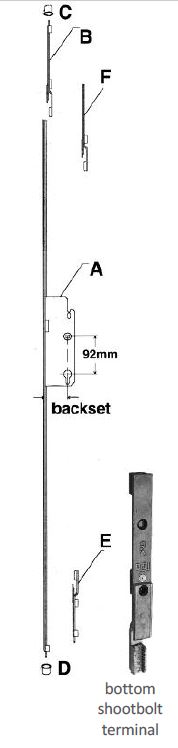

multi-point locks

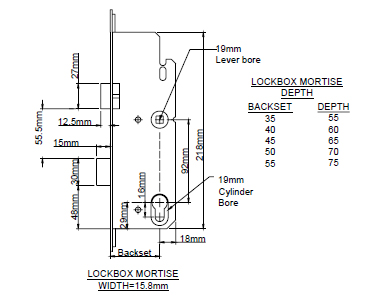

Mortise Case Dimensions


Standard Lever Height 41 5/16"
Max Height with Standard top bolt 82 11/16" and handle height of 41 5/16"
if you cut the bottom the overall height will be effected

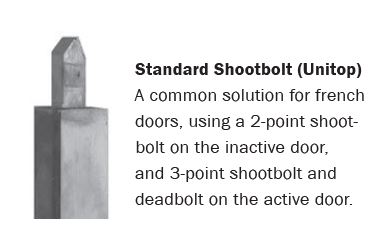

multipoint shootbolts

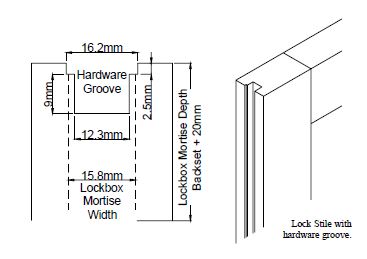

Lock and Rail door Groove
16mm Eurogroove

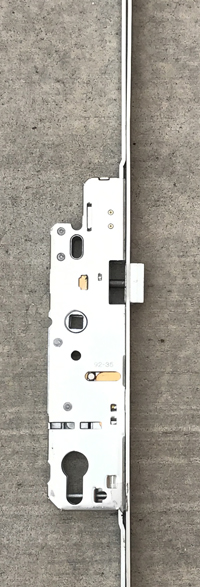

AGB MULTI-POINT LOCK AGB MULTI-POINT LOCK

A

$ 249.99

3 point lock

35 mm backset A41455.35.09.853
50 mm backset A41455.50.09.853
55 mm backset A41455.55.09.853

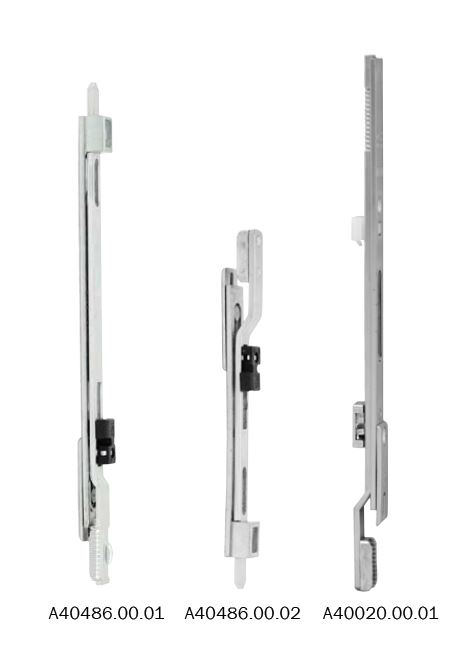

B

$ 18.99

Top Shoot Bolt
Terminal

top shootbolt terminal
180mm
A40486.00.01

for doors up to 82" without extension

E

$ 18.99

BottomShoot Bolt
Terminal

bottom shootbolt terminal 120mm
A40486.00.02

not needed if lever height is 41 5/16"

F

$ 22.99

Extension 200mm

Extension 200mm (7 7/8")
A40020.00.01

for doors up to 90"

F

$ 27.99

Extension 400mm

Extension 400 mm (15-3/4")
A40020.00.02.851

for doors up to 98"

F

$ 34.99

Extension 600mm

Extension 600 mm (23-5/8")
A40020.00.03.851

for doors up to 106"



If Bottom Rod is cut, that must be taken into account on top rod and extensions


C $ 4.99 Top Stike for shoot-bolts - Silver
A40026.01.06
C $4.99 Top Stike for shoot-bolts - SBrass
D00301.10.01
D $ 12.99 Bottom - Silver
Thimble Strike with Dust Cap
W01696.00.04
Cap size 21mm
    D $ 14.99 Bottom - Brass
Thimble Strike with Dust Cap
78414OT dust strike, brass
Cap size 24mm



Unitop Installation Guide Multi-point replacement trim Specifications
Dimensions Page

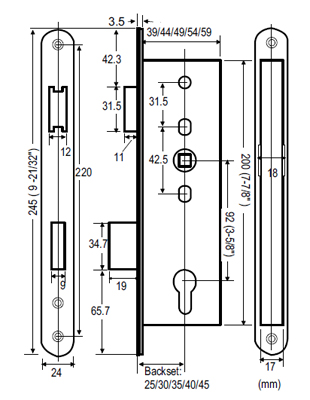

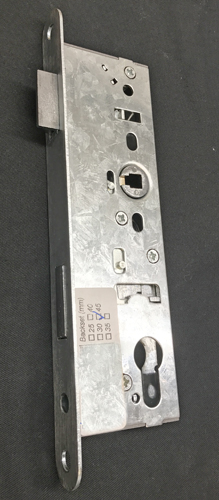

One Point Replacment Boxes



A simple way to replace a Multi-pint mechanism is to use a 1 point box
Cut top and bottom rods and use this box that offers a deadbolt and latching Functions
Available in 5 backsets (25,30.35,40,45 mm)

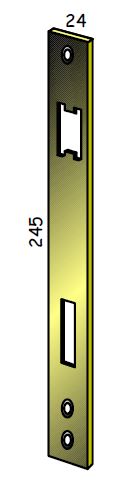

Strike and front Available in Silver, Bronze and Brass finishes
Mortise Box $90.00

Quantity



Strike $20.00


Quantity







Profile Cylinder to American Conversion

The Profile Converter enables the European Style Mortise case to be operated by American Cylinder

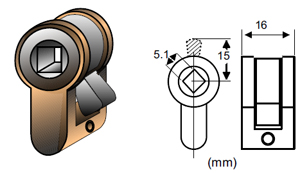

Conv1

All Metal Construction.
works with 5mm spindle or
2 mm Flat Tail Piece		 $ 32.00

Quantity

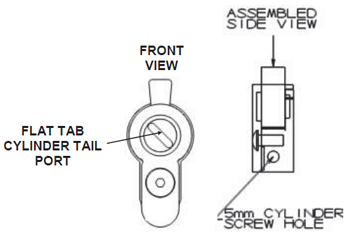

Conv2

All Metal Construction.
works with 2 mm Flat Tail Piece		 $44.00

Quantity
