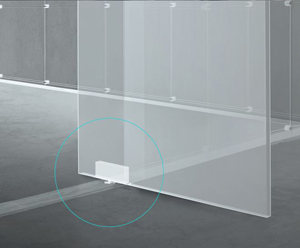

FritsJurgens

 Consealed Door Closer Page


No Cutting of Concrete Needed

Heavy Duty Pivots for custom
door applications

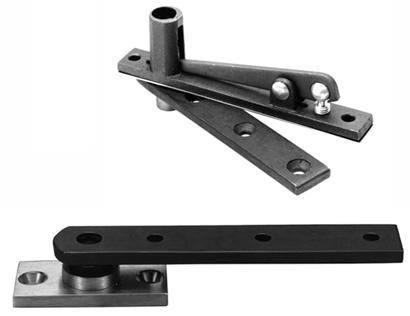

0370 PIVOT


RIXON H 117 3/4
Dimensions PDF Installation info Dimensions PDF Installation info
Available Finishes
Black
Silver
500 lb limit Available Finishes
613 Oil Rubbed Bronze
619 Satin Nickel
1000 lb limit


silver 26D $249.99
Satin Black - $ 299.99


$ 1399.00

Quantity

Limited Availability



0370SS
Stainless Construction

0128
Stainless Steel
Construction and finish

PDF Installation info

500 lb limit

Dimensions PDF Installation info

$ 249.99

Available Finishes
Black
Silver
250 lb limit

Silver 26D $ 149.99
Satin Black - $ 199.99




Using a Heavy Duty Pivot Hardware
with door track



Using a Pivot Hardware with door track


A pivot may be used with door track systems in order

To help increase the door weight of the system.
or
To offer a folding door option to systems that
do not have one.

The Top pivot Mounted traditionall, however,
will stop the door from folding flat to the wall (C)
so you need to either


If the System has a top pivot


use the top pivot from the system
and the heavy duty bottom pivot (B)


If the System does not offer a top pivot

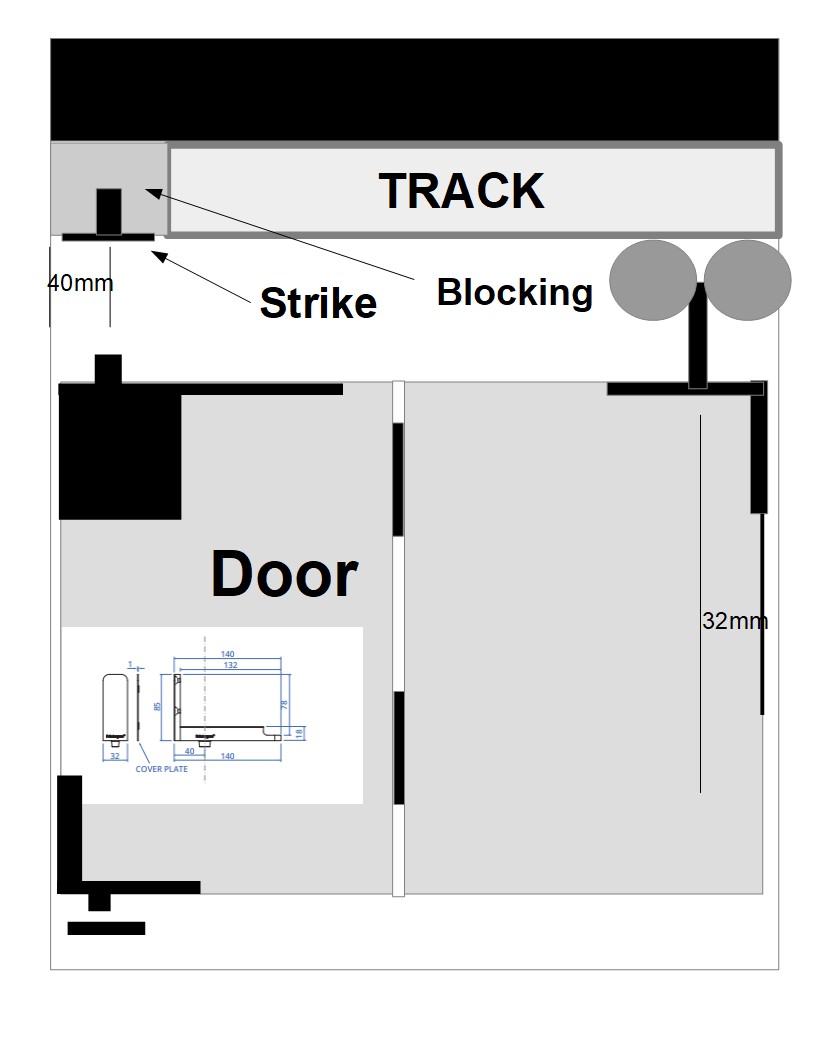

Install the top of the pivot perpendicular to the track
as shown on the left (D)
creating door layout (B)

______________________________________________________

Install the top pivot bracket reversed
creating a 5 1/2" pivot point (A)

______________________________________________________

Trap a second roller above the pivot
by drilling and tapping the track to lock the
roller in place and use as the top pivot (B)
and use the heavy duty bottom pivot
