Heavy Duty Pocket Door track

Johnson

300 LB TRACK AND ROLLER SETS

Freight is still $10.00 for the entire order - Continental US
Folding door kits also available

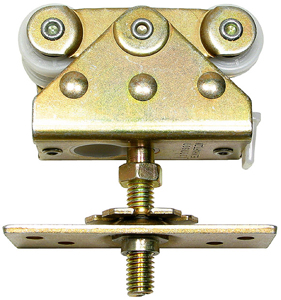

2020

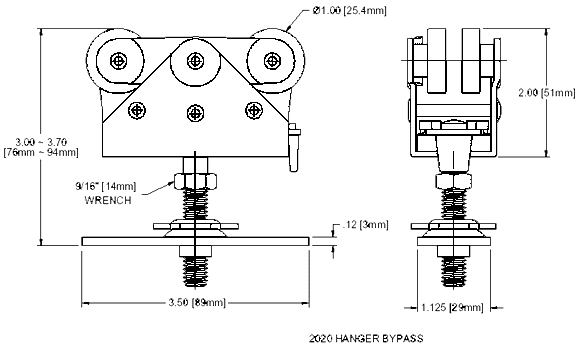

300 lb roller assembly

click above for larger image

2 per door needed
dimensions

Heavy Duty Ball Bearing roller assembly
with quick connect and easy height adjustment

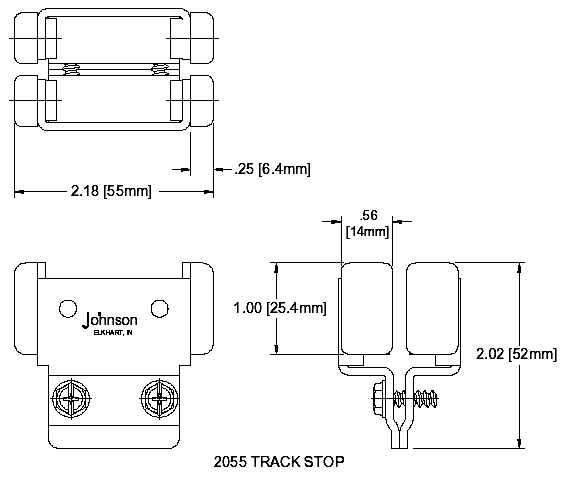

2055

Clip Stop for I-Track
dimensions

Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time

click above for larger image

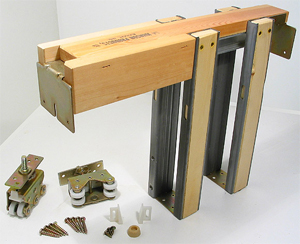

Includes

1 - Header Length
2 - Upright Pairs
2 - Floor Brackets
2 - 2020 Hangers
1 - 1550 Door Guide
1 - 1513 Door Stop

Surface Mount Bracket
for I-track

1 Bracket for every 16" of track

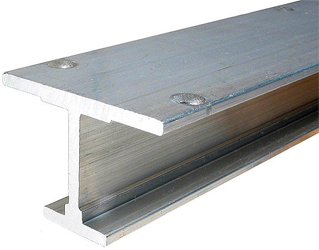

I Track

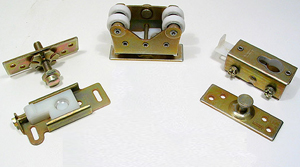

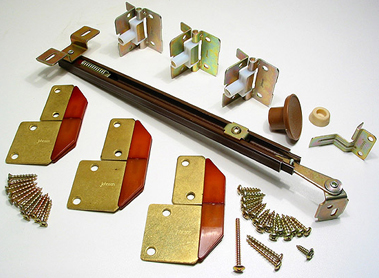

Bi-folding Kit
up to 125 lb panels

kit does 2 panels
4 panels require 2 kits

Johnson

200 LB TRACK AND ROLLER SETS

Freight is still $10.00 for the entire order - Continental US
Folding door kits also available

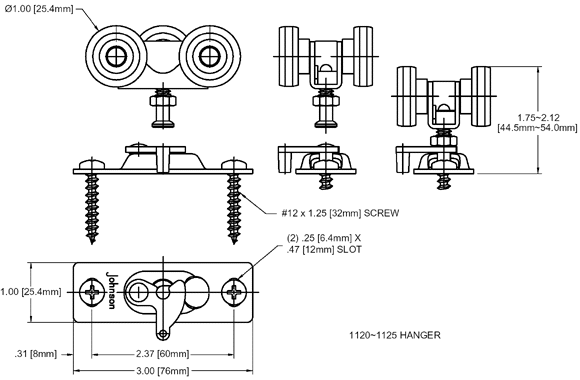

1125
200 lb roller assembly

click above for larger image

2 per door needed
dimensions

Heavy Duty Ball Bearing roller assembly
with quick connect and easy height adjustment

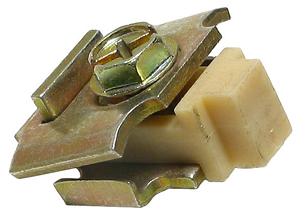

1155
CLIP STOP

click above for larger image

Clip Stop for U track

Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time

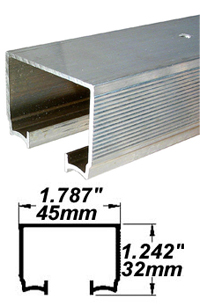

U- Track 200 pound

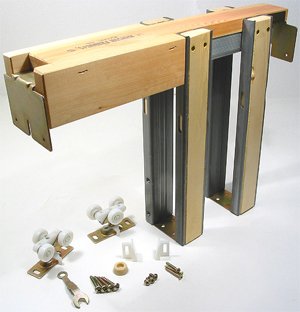

Pocket Door Frame Kit
for doors up to 3' x 6' 8"
Can be cut down

Includes

1 - Header Length
2 - Upright Pairs
2 - Floor Brackets
2 - 1125 Hangers
1 - 1550 Door Guide
1 - 1513 Door Stop

Double Track for Bi-Pass Doors

U Track
Bi-folding Kit
up to 125 lb panels

kit does 2 panels
4 panels require 2 kits

These items are now found oun our new site

for complete and updated Selection

HangingDoorHardware.com

KT 61

440 LB
TRACK AND ROLLER SETS

Heavy Weight in a Low Profile Track

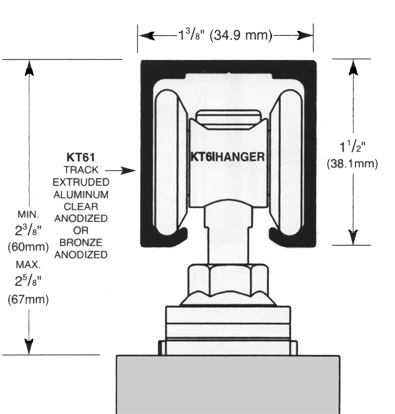

440 lb Hanger KT 61 Steel Wheel Precision Ground Bearings	Optional Face Mount Bracket KT 147B For KT41 or KT61 Hanger	385 lb Hanger KT 41 Nylon Wheel Precision Ground Bearings	KT 61 Aluminum Track For KT41 or KT61 Hanger clear anodized Standard also Available in anodized Bronze

			Can also be used on the floor

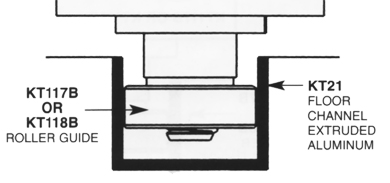

Bottom Guide KT 117B Stainless Steel Single Wheel	Bottom Guide KT 118B Stainless Steel Double Wheel	KT 21 Aluminum Bottom Track For KT41 or KT61 Hanger clear anodized Standard also Available in anodized Bronze	Can also be used on the floor
These items are now found oun our new site for complete and updated Selection HangingDoorHardware.com

PC henderson 200 LB TRACK AND ROLLER SETS

click above for larger image

We are pround to offer PC Henderson Husky Pocket Door track and hardware kits.
These kits are rated at 200 pounds per door using precision made components.
Tracks are available in either Steel or Aluminum
Wheels are Nylon Bodied with Acetal wheels - 4 wheel hanger
Track Clip Stop holds door in place at either end
Includes Bottom nylon guide
Theses units can be used on all sliding doors

Freight is still $10.00 for the entire order - Continental US
Folding door kits also available

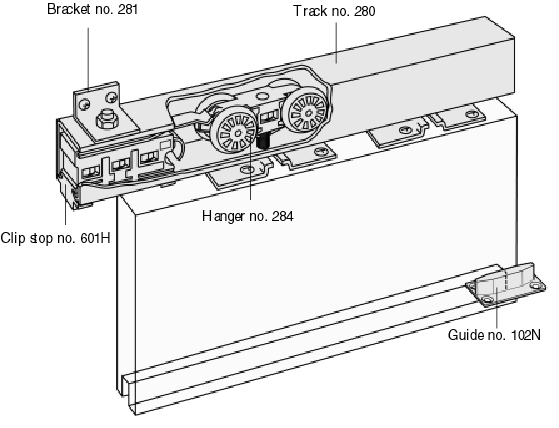

Parts included in Hardware kits above

for up to 200 pound sliding doors
2 - 4 wheels nylon ball bearing rollers with metal hanger
bracket height adjustable
bumper stop
1 - Nylon floor guide - (requires bottom door groove)
1 - Hardware screw pack and ajusting wrench
instructions

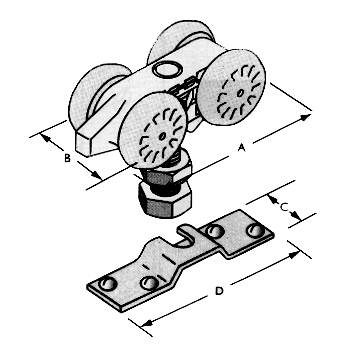

(2) Rollers
Roller Dimensions
2" x 1 1/8"

Hanger Assembly
Plate Dimension 1" x 4 3/8"

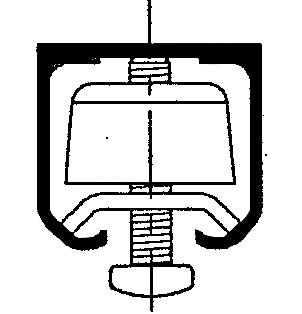

(2) Bump Stop

Standard Bottom Guide

Old Style Metal Hanger/ rollers in stock $30.00 ea

Top Track

Aluminum track	Steel Track	1 1/16" tall 1 3/16" wide 18 G

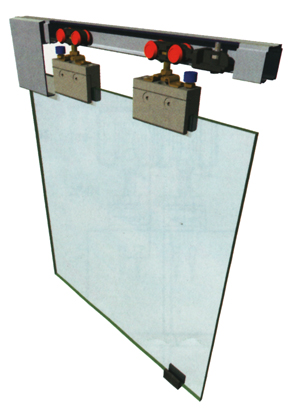

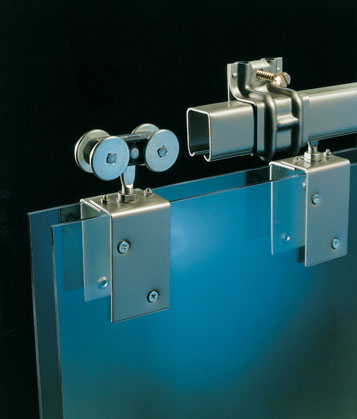

Husky Glass Door Hanger Kit

Husky Glass Clamp
Kit Includes
2 Hangers 2 Clamps 2 End track Stops
Max Door Weight 165 lbs.
Glass Weight / Thickness
5/16"	3.95 lbs./sq. ft.
3/8"	5.05 lbs./sq. ft.

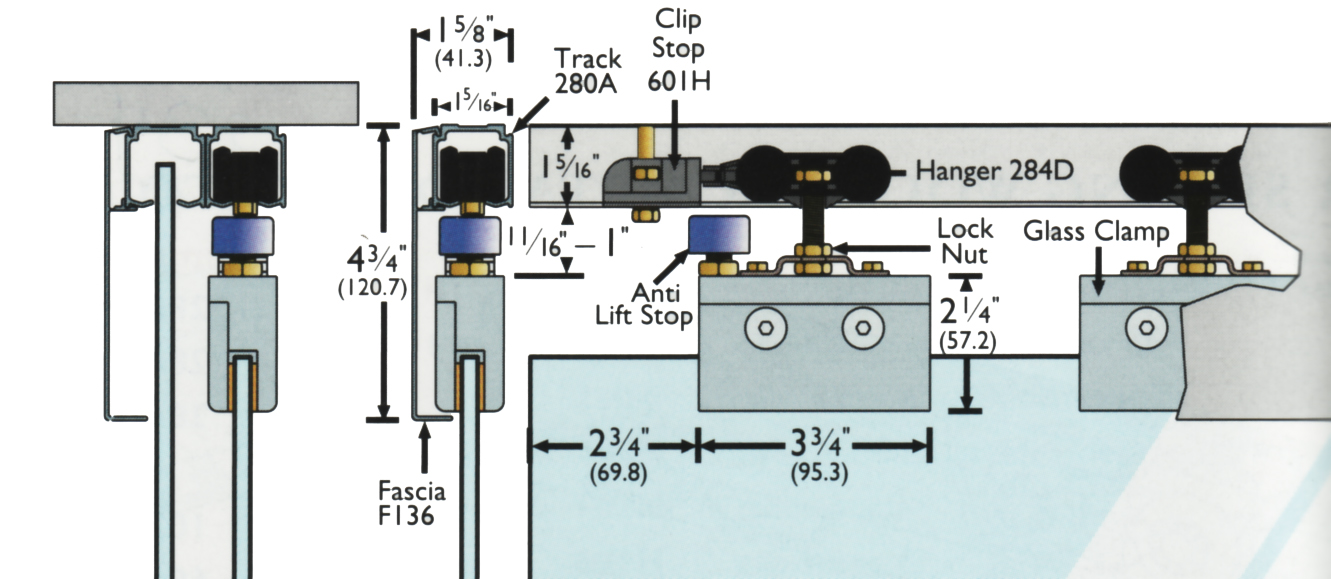

Application Image

These items are now found oun our new site

for complete and updated Selection

HangingDoorHardware.com

PC Henderson

300-400 LB
TRACK AND ROLLER SETS
PC 290 track

Folding door kits also available

Rollers 290 track

click above for larger image

1 3/4" tall

1 7/16 wide

14G thickness

Galvinized finish Steel

These items are now found oun our new site

for complete and updated Selection

HangingDoorHardware.com

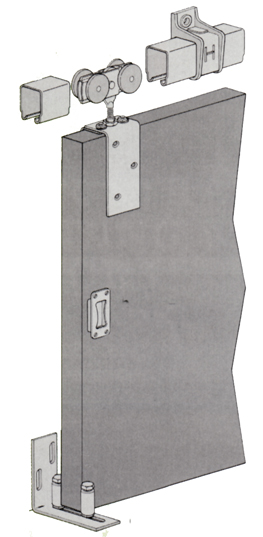

PC Henderson

1000 LB
TRACK AND ROLLER SETS

PC301H

1000 LB Hardware is Special order
please call for lead time

Rollers for 301H track
Up to 1000 pounds

click above for larger imag e

click above for larger image

301H Track

1 3/4" tall

1 7/16 wide

14G thickness

Galvinized finish Steel

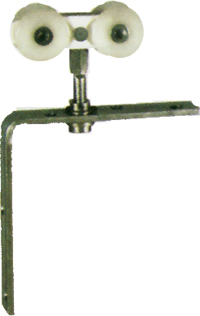

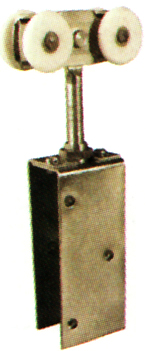

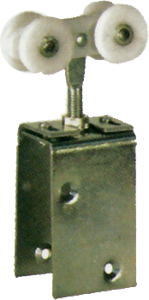

53 A / Nylon Wheels

57 A / Nylon Wheels

52 A Nylon Wheels

301H track 8'

1000 lb max

Track and Supports 301H track Track can also be attached directly by drilling through the track
click above for larger image	click above for larger image	click above for larger image	click above for larger image	click above for larger image	click above for larger image
1A / 301	5 / 301	4A / 301	3A / 301	1AX / 301	HH3/301
Sidewall Bracket single track	Sidewall Bracket double (2) tracks	Top Mount Overhead Bracket Track must be fed into bracket	Top Mount Overhead Bracket	Sidewall Bracket for Joining 2 tracks	Track Mounted Stop

These items are now found oun our new site

for complete and updated Selection

HangingDoorHardware.com

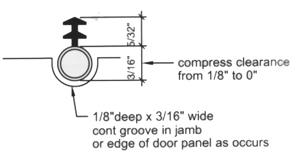

Sliding Door Weatherstrip

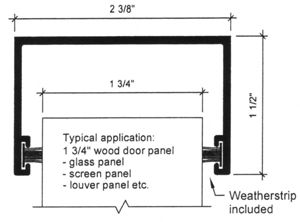

KTD WP 108-50 Kerf in Pile	KTD WP 108-35 Kerf in Pile	Top Jamb for Sliding Doors with bottom Rollers

for use with 7/16- 5/16" clearance	for use with 5/16- 3/16" clearance	KTP-134
Black Pile Brushseal 1/8" x 5/16" Dado groove		Anodized Bronze 12'

KTD WW S32 Seals		Interlock weatherstrip for Multi-Door Applications

		KT-INT
